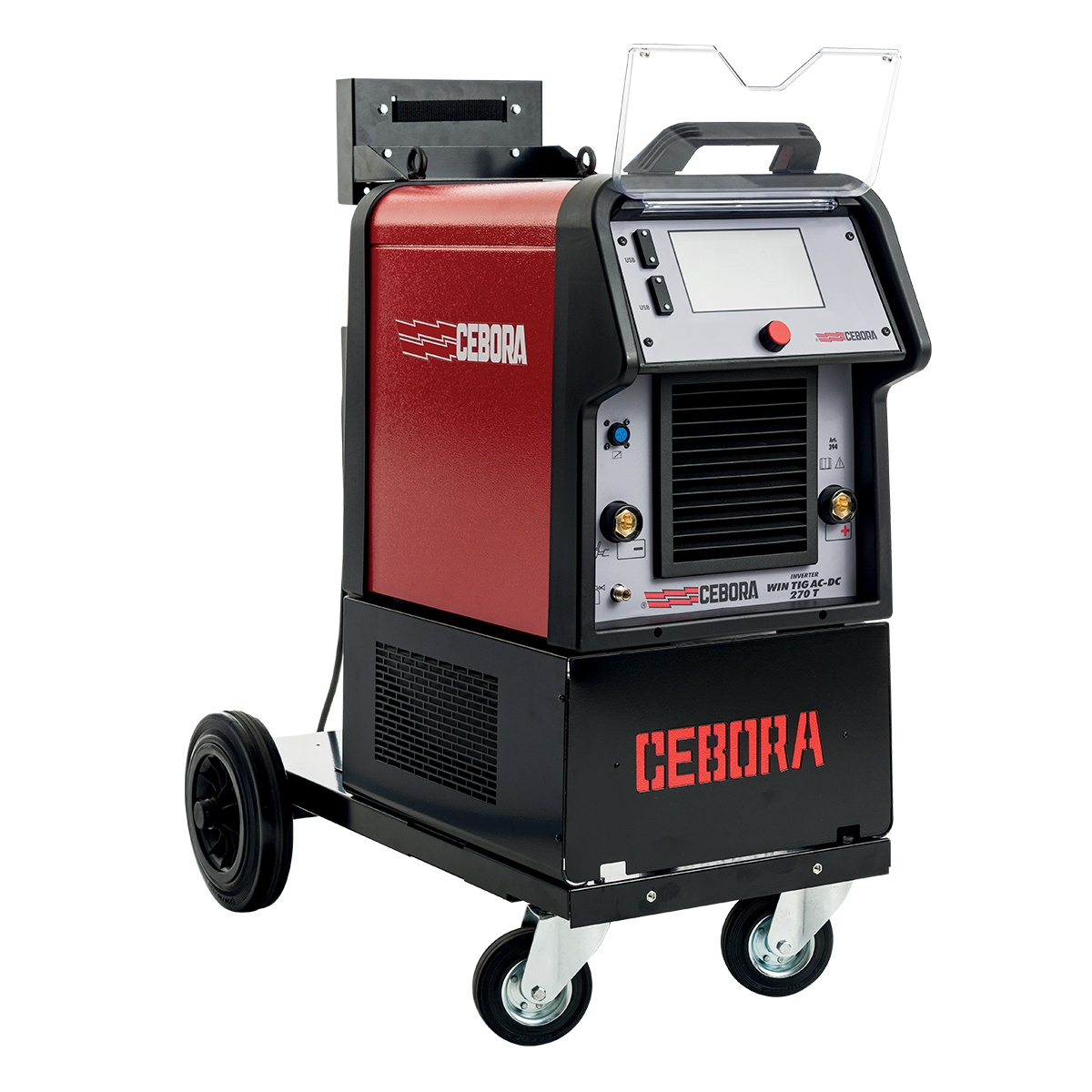

WIN TIG AC-DC 270 T

INVERTER THREE-PHASE COMPACT POWER SOURCE FOR MMA AND TIG AC-DC WELDING. HIGH FREQUENCY IGNITION

Benefits

User-friendly LCD touchscreen Display

Equipped with XP,APC and DC TIG functions

TIG AC, MIX AC+DC and Synergic Waveform functions

Remote control and data backup

Compliant with Industry 4.0

AC Frequency is now adjustable from 50 to 200 Hz

FEATURES

• 7” LCD touchscreen Display
• Equipped with transportation trolley
• Pre-equipped with cooling unit
• EVO LIFT function allowsto place the electrode in the exact position avoiding the piece oxidation and the heat control
• EVO START function in order to optimize edge junction
• APC TIG (Active Power Control) welding process which guarantees a deeper penetration, a more stable arch, avoids the electrodes to get stuck to the piece, allows to adapt the arc to the welding conditions only with the torch movement
• intermittence Pause Time Welding function which makes welding clearer with a time regulation in a second cents range
• Pulse function to be adjusted up to 2,5 kHz
• eXtra Pulse (XP) function: a very high frequence pulse that works on small thicknesses where the transferred heat must be minimal
• Possibility to match a low pulse frequence to the XP process in order to improve the penetration and the welding speed on small-medium thicknesses.
• JOB function which makes it possible to save up to 99 welding programs
• Minimum DC current equal to 3 A
• Advanced users: software package for the advanced users management [Art. 809]
• Quality control: software package for the quality control [Art. 273]
• Production mode: software package for production management [Art. 817]
• In AC TIG mode, it is possible to independently adjust the width and duration of the penetration and cleaning of half-waves
• AC+DC TIG process for aluminium welding and its alloys
• AC frequency from 50 to 200 Hz
• In AC mode, possibility of selecting several combinations of the three waveforms (square, triangular, sine-wave)
• AC MMA welding process suitable for welding electrodes on magnetized sheet metal, prevents the "magnetic blow" in the welding of iron boxes and it is usually employed in maintenance work
• VRD function: reduces the vacuum voltage ensuring the use of the welding machine in environments with high electrical risk thus offering maximum safety to the operator
• Compliant with Industry 4.0 the new hardware structure implements a web server (through the Ethernet LAN port or, with an external kit, via Wi-Fi) that allows the operator to carry out all those activities that require the collection and processing of data, welding parameters configuration, diagnostics and remote assistance
• Remote control mode from personal computer, tablet or smartphone
• 2 USB ports for download and software update
• Equipped with digital ammeter/voltmeter with 1% accuracy and thermal protection devices
• Easily removable cooling grille
