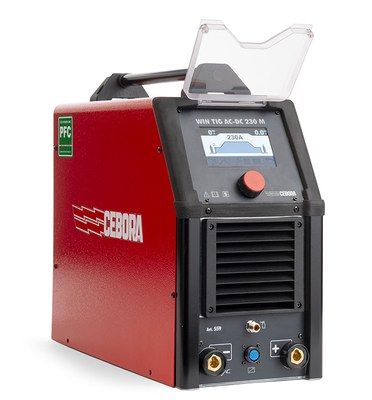

Pulse TIG AC-DC as standard

FEATURES

• User-friendly 5" LCD touch screen display
• New cooling unit and trolley for transportation
• EVO LIFT function allows to place the electrode in the exact position avoiding the piece oxidation and the heat control
• EVO START function in order to optimize edge junction
• APC TIG (Active Power Control) welding process which guarantees a deeper penetration, a more stable arch, avoids the electrodes to get stuck to the piece, allows to adapt the arc to the welding conditions only with the torch movement
• Intermittence pause time welding function which makes welding clearer with a time regulation in a second cents range
• DC TIG process with a minimum current of 3 A useful to carryover operations on metal mould edges.
• AC TIG process with minimum current of 5 A that allows coating on very thin aluminum parts
• DC PULSE process as standard
• eXtra Pulse (XP) function: a very high frequence pulse that works on small thicknesses where the transferred heat must be minimal
• TIG MIX (AC+DC) process for improved welding on cold workpieces.
• Fast spot welding with minimal heat input due to the specific function that allows accurate adjustment (in 10 ms steps) of welding time and intermittent time suitable for DC and AC spot welding work on thin sheets.
• VRD (Voltage Reduction Device) function: in MMA mode, enhances safety in dangerous environments.
• JOB function which makes it possible to save up to 99 welding programs
• USB port
• Prearranged for integration into simple automation via optional analog interface kit (Art. 456)
• Remote control panel kit. To be compulsorily coupled to art. 2065 (Art. 457)
