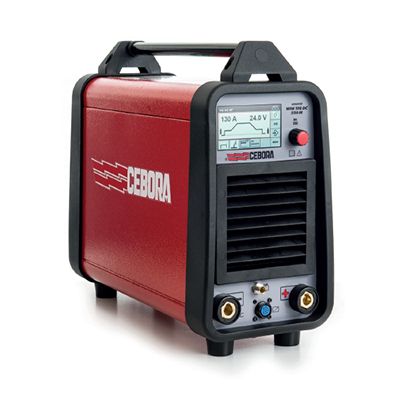

WIN TIG DC 220 M

WIN TIG DC 220 M

Home/Store/WELDING EQUIPMENT/TIG WELDERS/SINGLE PHASE
SKU 553
Product Details
Brand: CEBORA
INVERTER SINGLE PHASE COMPACT POWER SOURCE FOR DC TIG AND MMA WELDING. HIGH FREQUENCY IGNITION

Features

  • User-friendly LCD Display
  • EVO LIFT function allows to place the electrode in the exact position avoiding the piece oxidation and the heat control
  • EVO START function in order to optimize edge junction
  • APC TIG (Active Power Control) welding process which guarantees a deeper penetration, a more stable arch, avoids the electrodes to get stuck to the piece, allows to adapt the arc to the welding conditions only with the torch movement
  • Intermittence Pause Time Welding function which makes welding clearer with a time regulation in a second cents range
  • Pulse function selectable up to 2,5 kHz
  • eXtra Pulse (XP) function: a very high frequence pulse that works on small thicknesses where the transferred heat must be minimal
  • Possibility to match a low pulse frequence to the XP process in order to improve the penetration and the welding speed on small-medium thicknesses
  • JOB function which makes it possible to save up to 9 welding programs
  • Wiz function helping the operator to take quick decisions based on the desired welding process
  • The power source can also be powered by motor-driven generators of appropriate power (10 kVA)

TECHNICAL SPECIFICATIONS

Art. 553 Technical Specifications

TIG

MMA

115 V
50/60 Hz
+15% / -20%

230 V
50/60 Hz
+15% / -20%

115 V
50/60 Hz
+15% / -20%
230 V
50/60 Hz
+15% / -20%

Alimentazione monofase
Single phase input

25 A

16 A

25 A 16 A

Fusibile ritardato
Fuse rating (slow blow)

3,8 kVA 40%
3,1 kVA 60%
2,2 kVA 100%

5,3 kVA 30%
3,2 kVA 60%
2,7 kVA 100%

3,6 kVA 35%
2,8 kVA 60%
2,3 kVA 100%

4,5 kVA 35%
3,8 kVA 60%
3,4 kVA 100%

Potenza assorbita
Input power

5 ÷ 160 A

5 ÷ 220 A

10 ÷ 110 A

10 ÷ 140 A

Campo di regolazione della corrente
Current adjustment range

160 A 40%
140 A 60%
110 A 100%

220 A 30%
160 A 60%
140 A 100%

110 A 35%
90 A 60%
75 A
100%

140 A 35%
125 A 60%
115 A 100%

Fattore di servizio (10 min. 40° C)
Secondo norme IEC 60974-1
Duty Cycle (10 min.40°C)
According to IEC 60974-1

IP23S

Grado di protezione
Protection class

16 kg

Peso
Weight

207x500x411 mm

Dimensioni (LxPxH)
Dimensions (WxLxH)
