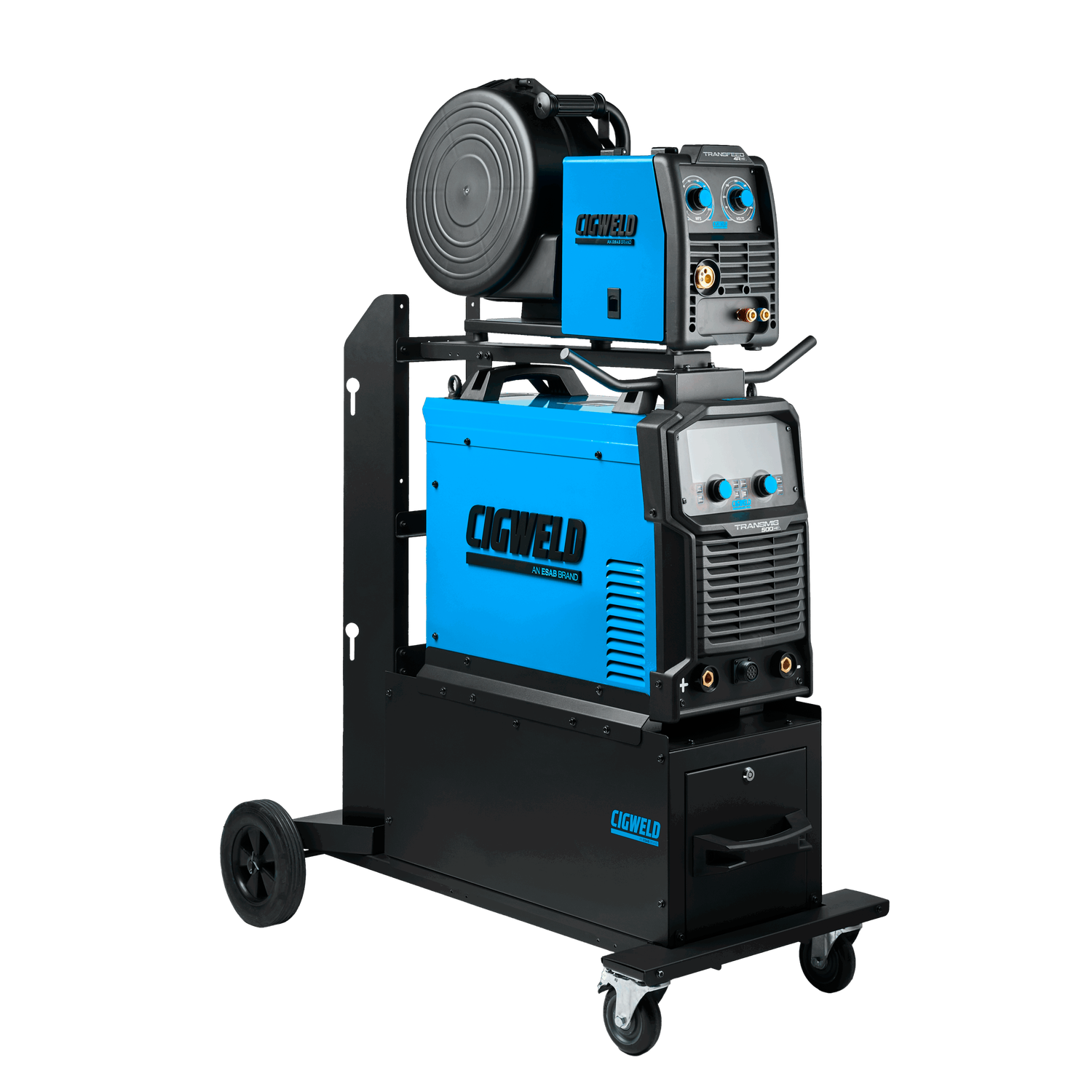

Transmig 500HD – Multiprocess Welding Inverter AIR COOLED TORCH

The new Transmig™ 500HD gives you access to serious welding power across MIG, STICK, TIG DC-Lift, and powerful Arc Gouging, all backed by an 80% duty cycle at 500A for those long, uninterrupted weld runs in high-demand industrial environments.

To take it a step further, the Transmig 500HD seamlessly connects with the Transfeed 4R HD Wirefeeder (included in the plant package), offering a 4 Roll Geared Wire Drive system that handles 200mm and 300mm wire spools with absolute precision.

Need it mobile? No worries — with 10m interconnection leads, built-in 2-point lifting lugs, and a robust HD trolley, the Transmig 500HD is ready to move wherever the work takes you.

HEAVY DUTY. BRUTE POWER. ZERO HASSLE

The Transmig 500HD has gouging capabilities with up to 9.5mm carbon rods, giving you the flexibility to prep and repair on the fly. Its arc stability and control are just as sharp with Hot Start, Arc Force, Adjustable Burnback and Crater Fill on MIG, giving you fine-tuned arc response across any process.

It is your ultimate solution for heavy fabrication, workshop production, mining, structural welding and repair work. Air or water cooled, it won’t miss a beat.

With an 80% duty cycle at 500A, you’ll get extended performance under pressure, and thanks to the built-in Voltage Reduction Device (VRD) , you can switch back to STICK welding with added operator safety. Run it with the included Tweco TW4 HD MIG Gun for precision work and added versatility.

Features:

• Heavy-duty 500A output with 80% duty cycle at max load
• Multi-process capability: MIG, STICK, DC Lift TIG and Arc Gouging
• 4-roll geared wire drive system for smooth and consistent wire feeding
• Supports 300mm diameter spools with included 200mm adapter
• MIG gun holder and cable management bracket included
• G-Size Cylinder Holder
• 2-point Lifting Lugs
• Transfeed 4R HD Wirefeeder with Locating Post
• MIG Adjustable Burnback Control
• MIG Crater Fill Function in 2T/4T Modes
• 16 Programmable Memory Channels
• STICK Mode with VRD
• STICK Hot Start & Arc Force Control
• Gouging Capability – Up to 9.5mm Carbon Rods
• Factory-Fitted 32A Plug

Warranty Period 5-Year conditional warranty. See terms and conditions at cigweld.com.au or in the Operating Manual, included with the machine.

Transmig 500HD Plant Package Contents (Air Cooled):

• Transmig 500HD Power Source
• Transfeed 4R HD Wirefeeder
• Transmig HD Trolley
• Interconnection Leads – 10m x 70mm²
• HD Drawer
• Tweco Trade TW4 MIG Gun 3.6m
• Work Return Lead – 10m x 70mm²
• BlueJet 45LPM Argon Regulator
• V-Groove & Knurled Feed Rolls Spare
• Operating Manual

Transmig 500HD Plant Package Contents (Water Cooled): Includes all of the above PLUS:

• Transcool HD Water Cooler (replaces the drawer used on air cooled package)
• TW4 4m Water-Cooled MIG Gun (replaces the TW4 MIG Gun 3.6m used on air cooled package)
• Water-Cooled Interconnection Leads (replaces the Air-Cooled Interconnection Leads)

Ordering Details: Transmig 500HD Plant Package Air Cooled - P/N: W1400500

Transmig 500HD Plant Package Water Cooled - P/N: W1401500
