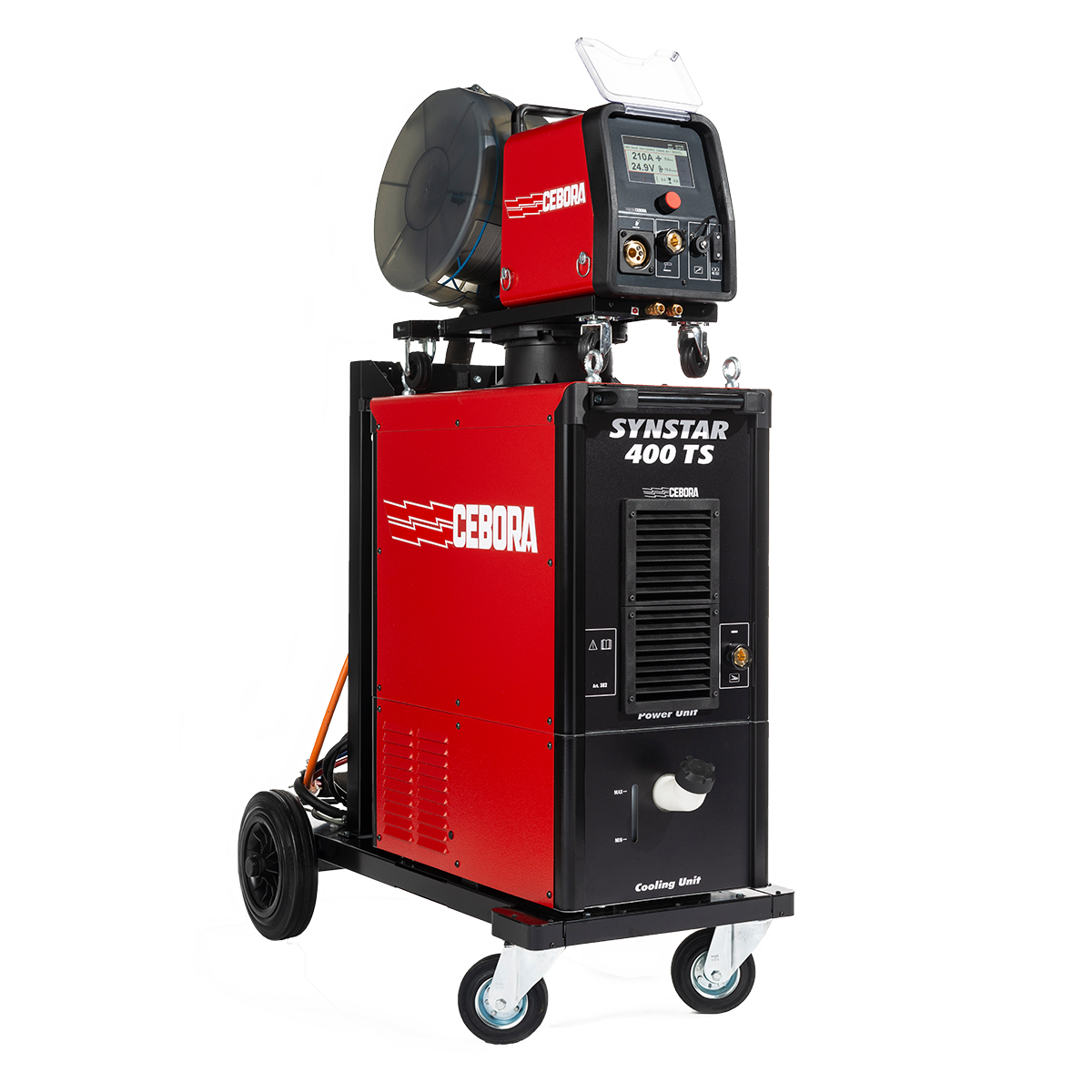

SYNSTAR 400 TS

INVERTER THREE-PHASE POWER SOURCE FOR MIG/MAG AND MMA WELDING

The new SYNSTAR 400 TS is a synergic inverter three-phase power source for MIG/MAG and MMA welding, with 4-roller Cebora wire feed unit

Benefits

User-friendly LCD touchscreen Display

Pre-arranged for Pulse and Double Pulse functions

4-roller wire feed unit

Software updating in few seconds

FEATURES

• Aluminum 4-roller wire feed unit (Ø 37 mm)
• Equipped with cooling unit and with power source transportation trolley, ground lead ( 3 m - 70 mm2) and clamp
• The yield of this power source is the highest among the comparable ones and allows to obtain a maximum current of 400 A at 100% of the duty cycle (10 min. 40°C), according to IEC 60974-1 standards absorbing about 25 A from the mains power supply.
• The power source has many adjustable functions which can be accessed from 5 ” colour Display Touchscreen, including:
  - Arc Length, 2/4 strokes, Spot Time, Pause Time, Inductance, Burn Back, Soft Start, post-pre gas, etc.
  - SHORT or PULSE function
  - Three important specific functions dedicated to an optimal aluminum welding (3 levels, Automatic Hot Start, Automatic Crater Filler)
• Welding programs for wires ø 0,8/1,0/1,2/1,6 mm., and also for pulsed synergic programs
• MIG SHORT HD (High Deposit)
• Upgrade MIG Pulse and HD Pulse [Art. 238]
• Upgrade MIG double current level function [Art. 813]
• Upgrade MIG Double Pulse [Art. 238+813]
• Electrodes that can be used Ø 1,5 ÷ 6,0
• Firmware update through USB port and RS 232
