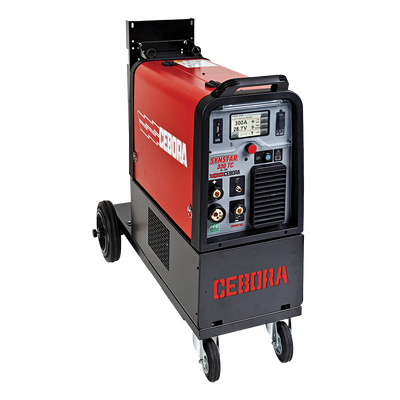

SYNSTAR 330 TS

MULTIPROCESS INVERTER THREE-PHASE COMPACT POWER SOURCE FOR MIG/MAG, DC TIG and MMA WELDING WITH SEPARATE WIRE FEED UNIT

The new SYNSTAR 330 TS is a multi-process synergic inverter three-phase (400 V 50/60 Hz +15% / -20%) power source for MIG/MAG, DC TIG (WITH 'Cebora lift' ignition) and MMA welding, with 4-roller Cebora wire feed unit.

Benefits

User-friendly LCD touchscreen Display

Pulse and Double Pulse functions

4-roller wire feed unit and over 70 welding programs

Software updating in few seconds

FEATURES:

• Aluminum 4-rollerwire feed unit (Ø 30 mm)
• Equipped with power source transportation trolley, ground lead ( 3 m - 50 mm2) and clamp
• Pre-arranged for cooling unit
• More than 70 welding programs for wires Ø 0,8/0,9/1,0/1,2mm., and also for pulsed synergic programs optimized for welding of thin thicknesses
• Supplied with double level of current (MIG Short process), Pulse and double Pulse
• Pulse TIG upgrade [Art. 234]
• The power source has many adjustable functions which can be accessed from 5 ” colour Display Touchscreen, including:
  - Arc Length, 2/4 strokes, Spot Time, Pause Time, Inductance, Burn Back, Soft Start, post-pre gas, etc.
  - SHORT or PULSE function
  -Three important specific functions dedicated to an optimal aluminum welding (3 levels, Automatic Hot Start, Automatic Crater Filler)
• Firmware update through USB port
• The power source is pre-arranged for the wireless connectivity to the welding mask with auto-darkening filter
• Second gas connection and additional dedicated solenoid valve when using the power source in TIG mode
