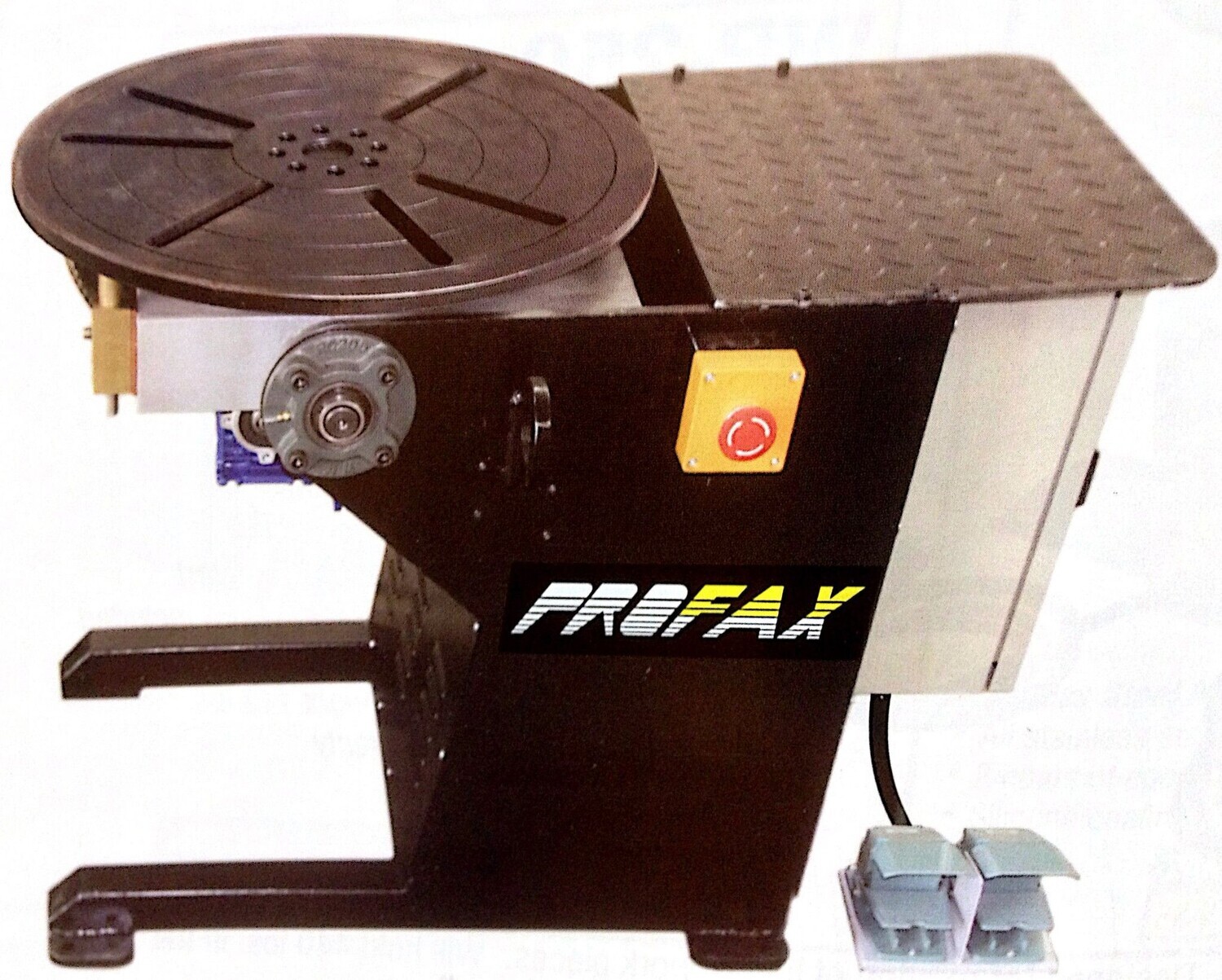

PROFAX WELDING POSITIONER 400 KG CAPACITY

Perfect weld positioner for precise rotation control (0.4 - 4 rpm). Fully adjustable angle from horizontal to vertical with back plate earth attachment and back purging facility.

Designed for rotation of lighter pieces of up to 400 kgs in the horizontal position and 227 kgs in the vertical position

Note: C/G of load not to be more than 150 mm from the centre of the turntable and 100 mm from the face of the turntable.

Optional "quick release" chuck also available

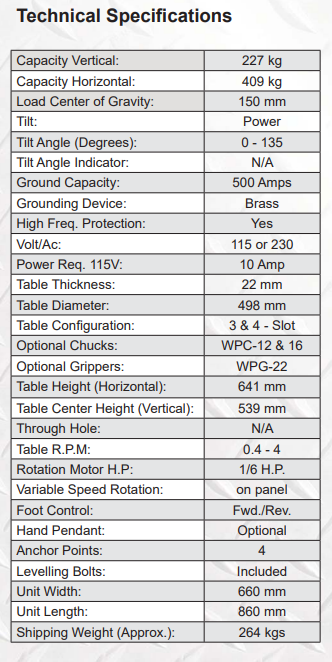

Features:

• 498 mm Diameter Table
• 0.4 to 4 rpm Rotation Speed
• Power Tilt Adjustment
• 230 Volt
• 0 - 135˚ Tilting Angle
• High Frequency Protected
• Standard with FWD/REV Control
• Shipping Weight 264 kgs
• 1 Year warranty
