MAGNETIC CENTERING HEADS

Magnetic Centering Heads 53076-M, 53025-M, 53085-M, 53077-D -

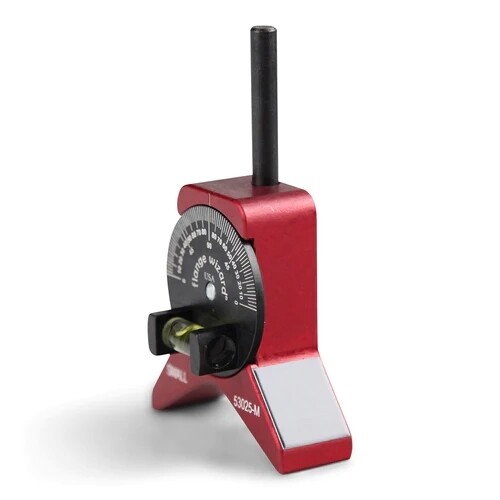

53025-M Small Magnetic Centering Head (for pipes 1” and larger) is designed for the person who works with smaller diameter pipe. Fire protection, fence and gate builders, live stock pens and corrals, and various alignment jobs in the automotive field are a few of the many uses.

53076-M Medium Magnetic Centering Head (for pipes 6” and larger) is designed to establish and mark a center-line at any angle around the circumference (inside and out) on a pipe or tank. This tool is a must for the welder’s or fitters’ toolbox.

53085-M Large Magnetic Centering Head (for pipes 10” and larger) has a one-piece magnetic “Y” shaped body like our other models, only wider and larger.

53077-D Digital Magnetic Centering Head (for pipes 3” and larger) is designed to establish and mark a center-line at any angle around the circumference (inside and out) on a pipe or tank.

• They have a one piece "Y" shaped body design with a 2-1/2° increment degree dial that turns 360°.
• The degree dial has a built-in vial for leveling the tool at various angles.
• The hardened center punch marks your set position by taping with a hammer (vial and center punch are replaceable for lasting service).
• Magnets in the legs will free up the users hands for a safer and more accurate layout mark.
• Use them to establish and mark a centerline at any angle around the circumference on a pipe or tank or as a protractor level.

The NEW hardened center punch (with Safety head) marks your set position by tapping with a hammer (vial and center punch are replaceable for lasting service).

Frequently Asked Questions

Question:

What size diameter does the small magnetic centering head (53025-M) work with?

Answer:

From 1-1/2" to 6" diameter.

Question:

What size diameter does the standard magnetic centering head (53076-M) work with?

Answer:

From 3" to 48".
