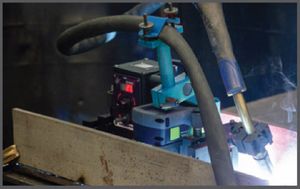

The Mini Spider is a battery-powered welding tractor designed to produce continuous fillet welds using MIG/MAG torches. The torch can be easily swapped from one side of Mini Spider to another.

• 4-wheel drive system with magnetic traction and a feedback loop provides highly efficient speed stabilization.
• Constant, continuous and repeatable travel speed enables weld bead geometry that is exact to the required specifications, thus reducing costly over welding and substantially decreasing filler metal usage.
• Compact and lightweight design to weld in narrow spaces
• Convenient 18 V DC battery supply* (the same battery for both Mini Spider and Gecko Battery) with an optional power supply that can be used to plug the carriage into a 110–240 V power source.
• Torch placement on left or right side
• Welding edge to edge
• Closed-loop speed control system based on electric motor with encoder – ensures increased speed accuracy
• Consistent heat input reduces distortion
• Reduces wasted filler metal – eliminates over welding
• Digital LED display for presetting of travel speed and diagnostic messages
• Low-battery indicator
• Built-in guide rollers

*Charger sold seperately

• Voltage: 18 V DC, 5.2 Ah | 1~ 110–240 V, 50–60 Hz (option)
• Power: 25 W
• 200mm Minimum working width
• Welding position (according to EN ISO 6947 and AWS/ASME):
  • PB / 2F
  • PD / 4F
• Torch diameter: 16–22 mm (0.63–0.87’’)
• Min. workpiece thickness: 4 mm (0.16”)
• Ground clearance: 4 mm (0.16”)
• Horizontal pulling force: 150 N
• Vertical pulling force: 100 N
• Horizontal speed **: 0–110 cm/min (0–43.3 in/min)
• Vertical speed **: 0–100 cm/min (0–39.4 in/min)
• Weight (w/o battery): 7.6 kg (22 lbs)
