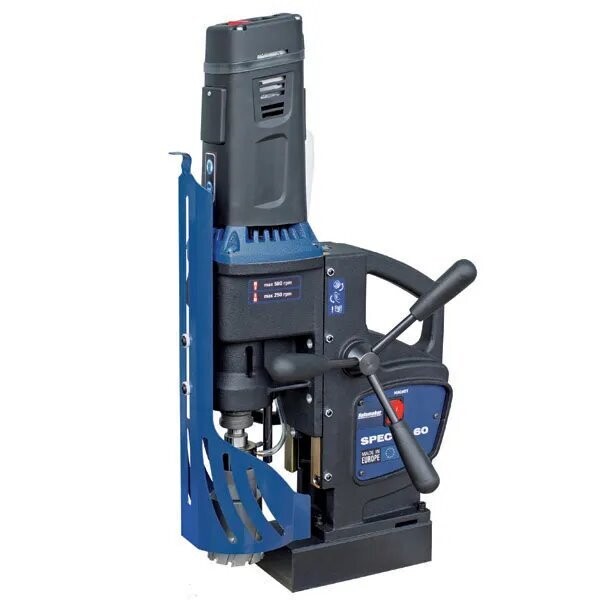

HOLEMAKER SPECIAL 60 MAGNETIC BASE DRILL, CAP: 60MM DIA X 75MM DEPTH

UNIVERSAL TAPPING & DRILLING MACHINE

The Holemaker Special 60 is a highly versatile European made machine for professional drilling and tapping applications, featuring the latest innovations in drilling machine technology. The machine’s forward & reverse work modes with variable speed adjustment allows thread cutting up to M20 of through holes and blind holes.

Features

• New generation Italian made motor
• Intelligent speed control system maintains stable speed regardless of load changes
• Electronic Variable Speed Control
• Electronic clutch
• Overload and Overheat protection
• Tilt sensor stops the motor in cases of machines break away
• 360-degree visual monitoring system indicates current condition of the drill and gives safety and diagnostic information e.g. worn brushes
• Intuitive control panel at top of the drill
• Very light weight
• Supplied in a durable blow mould carry case with cutter guard & safety strap

• Capacity ( Diameter ): 60mm
• Capacity ( Depth ): 75mm
• Twist drill capacity: 23mm
• Tap capacity: M20
• #2 Morse Taper spindle
• 1500 Watt 240V motor
• 2 Speed variable gearbox (160-250 / 390-580rpm)
• Lightweight, only 17kg
• 11000Nm Magnetic dead lift on 25mm steel plate
• 190mm Stroke
• Height 500mm min / 690mm max
