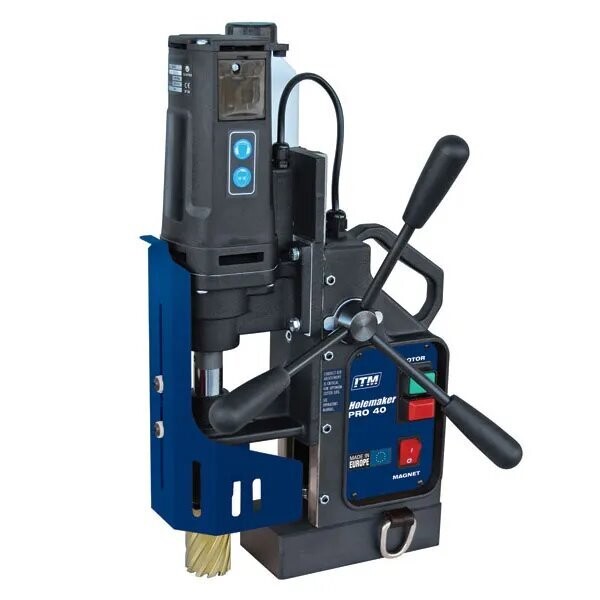

HOLEMAKER PRO40 MAGNETIC BASE DRILL, CAP: 40MM DIA X 52MM - GRUB SCREW

The Holemaker Pro 40 is a highly versatile, durable machine, offering exceptional value for money. This quality European machine features a 1020 watt industrial motor, powerful dual coil magnet and cutting capacity of 40mm diameter and 52mm depth using Holemaker cutters.
Offered as standard with a grub screw arbor system, which fastens positively onto Holemaker cutters.

The through cutter coolant feed, with an external side mounted gravity feed coolant tank ensures smooth fast clean hole cutting.
The feed handles can be placed on either the left or right hand side, for increased versatility.
An optional drill chuck system is available (SA70102), giving the ability to use twist drills up to 16mm diameter. The drill chuck system replaces the entire weldon arbor, allowing the full stroke of the machine to be utilised when using drill bits.

Capacity ( Diameter ): 40mm
Capacity ( Depth ): 52mm
Capacity ( Twist Drill : 13mm
Motor Power: 1020 watt
Input Power: 1100 watt Single Phase 240V
Speed: 440rpm
Weight: 12.7kg
Magnetic Dead Lift: 10650Nm On 25mm Steel Plate
Stroke: 124mm
Height: 385mm min / 509mm max
Through Spindle Coolant System
Smart Magnet Technology To Ensure Sufficient Magnetic Adhesion
Supplied In Metal Carry Case With Cutter Guard & Safety Strap
