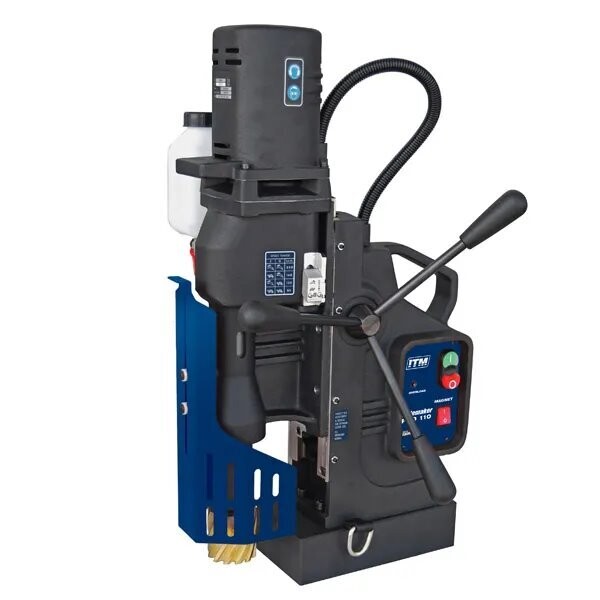

HOLEMAKER PRO 110 MAGNETIC BASE DRILL, CAP: 110MM DIA X 110MM

The Holemaker PRO 110 is an extra heavy duty, large capacity machine capable of producing burr-free holes up to 110mm diameter by 110mm depth.
1650w motor with 4-speed mechanical gearbox produces superb torque through gear reduction in low speeds. No. 4 Morse Taper spindle bore for usewith taper shank drills, tapping head (M30 Capacity) and taper shank reamers.

Supplied complete with side mounted coolant system and arbor for use with 3/4" shank Holemaker cutters up to 75mm diameter and 75mm depth of cut. Optional arbor to take 1-1/4" shank cutters up to 110mm diameter and 110mm depth. 1100ml pressure feed coolant bottle available, recommended for use with large diameter and depth hole drilling.

Capacity ( Diameter ): 110mm
Capacity ( Depth ): 110mm
Capacity ( Twist Drill ): #4 Morse Taper 47mm
Motor Power: 1650 watt
Input Power: 1800 watt Single Phase 240V
Gearbox: 4 Speed Heavy Duty Mechanical Gearbox (85 / 135 / 160 / 250rpm)
Weight: 31.0kg
Magnetic Dead Lift: 22000Nm On 25mm Steel Plate
Stroke: 214mm
Height: 566mm min / 780mm max
Through Spindle Coolant System
Smart Magnet Technology To Ensure Sufficient Magnetic Adhesion
Supplied In Metal Carry Case With Cutter Guard & Safety Strap
