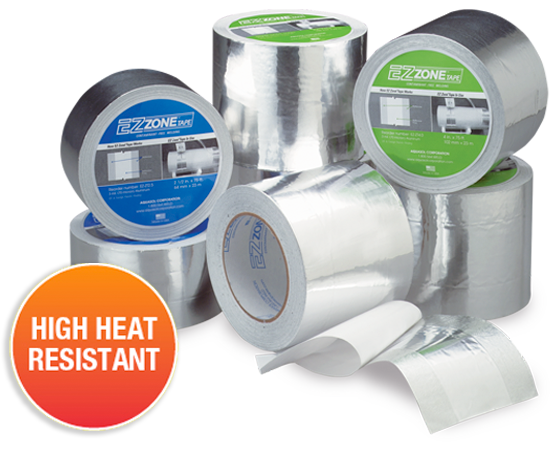

EZ ZONE TAPE - PURGE GAS RETAINING TAPE

SKU EZ-ZT 2.5

SIZE

Please choose

Product Details

Brand: EZ TAPE

About

EZ Zone® tape is the perfect, innovative solution for preventing weld seam contamination by sealing the root gap between two pipes and retaining the argon gas. The tape consists of two adhesive-coated aluminum strips on the outer edges and an adhesive-free area in the middle.

Due to its unique construction, the edges of the aluminum tape adhere to both sides of the root gap of stainless steel and aluminum pipes, while the adhesive-free area is placed directly over the gap. The adhesive never comes into contact with the weld area during welding, resulting in a clean, contamination-free weld seam.

The EZ Zone adhesive tape is free of halogens and fluorocarbons, and consists of aluminum foil with a thickness of 74 micrometers, which adapts optimally to irregular surfaces and is heat-resistant up to 260 °C.

With the EZ Zone tape, the welder can effectively prevent contamination in the weld pool and thus produce more defect-free welds. This advantage made the adhesive tape the standard in the atomic energy sector, the chemical industry, in conventional power plants and in aviation within a very short time.

Features and Benefits

Contaminant Free Weld

EZ Zone Tape eliminates the worry of adhesive contaminating the weld area when sealing the root gap between pipes because it is composed of two outside adhesive sections, separated by an adhesive-free center “zone”
Only the adhesive-free “zone” is placed over the weld, therefore the adhesive never comes in contact with the pipe as it is welded; creating a clean, contaminant-free weld
The “Zone” acts as a centering guide, making correct placement of tape and ensuring no adhesive contamination
Reduces pipe clean-up time and avoids costly x-rays

Flexible & Heat Resistant

Malleable aluminum tape easily conform to a number of complex shapes and uneven surfaces including stainless steel and aluminum pipes
Pressure-sensitive adhesive makes for easy application
Adhesive portion of aluminum tape withstands temperatures up to 500°F (260°C)
Aluminum foil portion of tape withstands temperatures up to 1100°F (593°C)

High Quality and Safe Components

EZ Zone Tape is free of halogens including fluoride, chloride and bromide as well as chlorofluorocarbon, increasingly important in today’s highly regulated safety environment

How EZ Zone Tape Works

Clean

Clean the weld area of all contaminants

Align

Line up adhesive – free section of EZ Zone Tape over the root gap
Adhesive sections of the EZ Zone Tape should be secured on each side of the root gap of the adjoining pipes

Introduce Gas

Insert purge gas needle into root gap, ensuring connection to gas line
Introduce noble gas, evacuating oxygen
Commence welding when desired PPM level is achieved

Types & Sizes

EZ Tape Fully Coated Aluminum Tape

ITEM NO	DESCRIPTION	WIDTH	WIDTH OF THE ADHESIVE-FREE ZONE	LENGTH
		ENGLISH	METRIC	ENGLISH	METRIC	ENGLISH	METRIC
EZ-ZT 2.5	EZ Zone Tape	2.5″	64 mm	1″	25 mm	75′	23 m
EZ-ZT 4.0	EZ Zone Tape	4.0″	102 mm	2″	51 mm	75′	23 m
