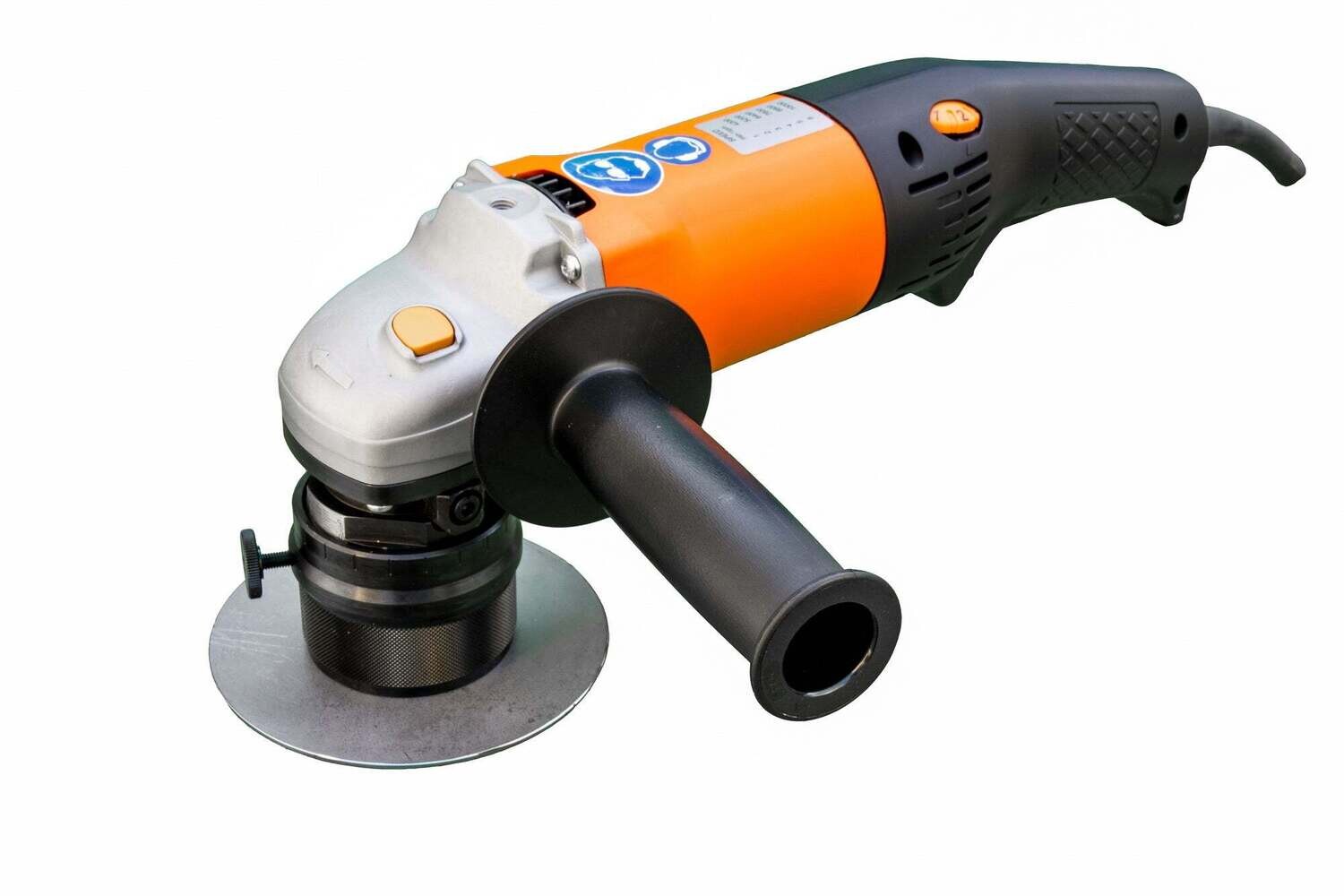

EXCISION BEVELER KFK5

BEVELER KFK5 (MAX. WIDTH OF BEVEL 5MM)

For the deburring of outer and inner outlines, bevelling, milling of radius and bore holes as from 20 mm Ø.

Especially developed to produce clean visible edges and to prepare welds.

• Tool-less adjustment of bevel height.
• Handy and powerful.
• For construction steels, stainless steels, aluminium and other materials.
• Multiple indexable insert holder 45° (optional 60°).
• Also for radius R = 2.5

• Bevel angle: 45° (optional 60°)
• Bevel width 45°:
  Steel 0 – 5 mm 400 N/mm2 infinitely adjustable
  Aluminium 0 – 5 mm 250 N/mm2 infinitely adjustable
• Bevel width 60°:
  Steel 0 – 4 mm 400 N/mm2 infinitely adjustable
  Aluminium 0 – 4 mm 250 N/mm2 infinitely adjustable
• Radius: R = 2.5mm
• Motor voltage:
  240 V /50-60Hz
• Power: 1300 W
• Speed: 4200 - 11 000 rotation speed/ min-1 with soft start with thermal and overload protection
• Feed: manual
• Weight: 4kg

• KFK5 – Deburring and Bevelling Device
• 1 pc. milling tool 45° with indexable inserts
• 1 tool set
• Transport case
• 1 operation manual
