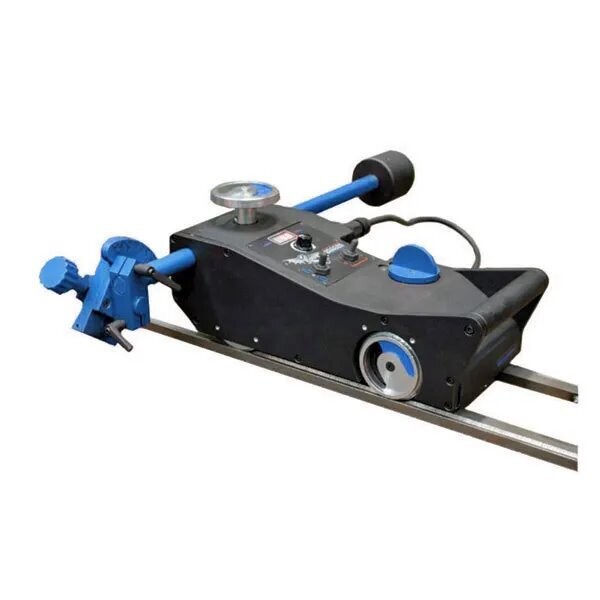

DRAGON OXY CUTTING AND BEVELLING CARRIAGE

The Dragon is designed to carry a range of oxy-fuel cutting torches with a grip diameter 28 - 35mm, to perform machine quality cutting and bevelling processes in a variety of applications.

• Cutting and bevelling 0° to 45° (also parallel with 2 torches)
• Quick clamping torch holder for torch diameter 28mm to 35mm
• Advanced speed control system with implemented digital control loop feedback PID regulator
• LED display with readout of actual and set speed, and report messages
• Travel on a rail or directly on a workpiece
• 2-wheel drive with automatic braking drive unit
• Quick drive release switch for easy re-positioning
• Connectable rails to form various lengths
• Rigid and heat-proof design

PACKAGE INCLUDES

• Dragon carriage
• Torch rack 580mm
• Counterweight 1.3kg
• Torch holder with angle & height adjustment (WAP-D6030)
• Power cord
• Operator’s manual

Power supply: 115-230VAC / 50-60Hz
Power: 13W
Torch grip diameter: 28-35mm
Chassis to material clearance: 7.5mm
Travel mechanism: 4 Knurled Wheels, 2 Wheel Drive
Guiding equipment: Optional “V” Type Rail With Grooves At 152mm Centres, 1800mm Length (Part# WAP-D6010)
Cutting speed: 0-1500mm/min
Chassis dimensions: 427mm(L) x 189mm(W) x 180mm(H)
Weight: 16.8kg
