CUTSKILL ARGON FLOWMETER

The CutSkill Flowmeters provide accurate indication of flow rate of shielding gases for MIG and TIG welding processes.

The 201711 Flowmeter has been designed for MIG, Short Arc and Spray Arc applications and is calibrated for 10 to 40 lpm.

• Stainless steel metering bobbin
• Maximum 40LPM Flow Rate
• Maximum Inlet Pressure 20,000kPa
• Robust brass body and fittings
• Failsafe against over pressure

Calibrated flow rates at 200 kPa inlet pressure

• 1 to 40 lpm (21 to 85 SCFH)
• Inlet connection 5/8”-18 UNF Female
• Outlet connection 5/8”-18 UNF Male

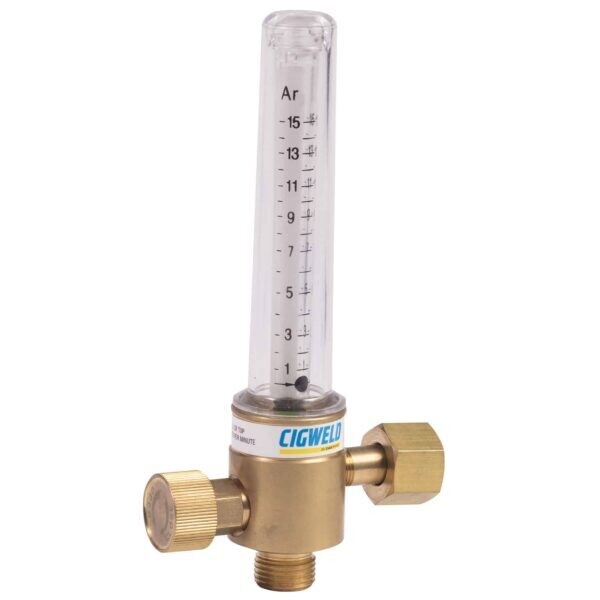

The 201710 Flowmeter has been designed for TIG processes and is calibrated for 1 to 15 lpm. The metering bobbin is a Teflon ball.

• Teflon ball metering bobbin
• Maximum 15 LPM Flow Rate
• Maximum Inlet Pressure 20,000kPa
• Robust brass body and fittings
• Failsafe against over pressure

Calibrated flow rates at 200 kPa inlet pressure

• 1 to 15 lpm (2 to 32 SCFH)
• Inlet connection 5/8”-18 UNF Female
• Outlet connection 5/8”-18 UNF Male
