CIGWELD WeldSkill 185LCD

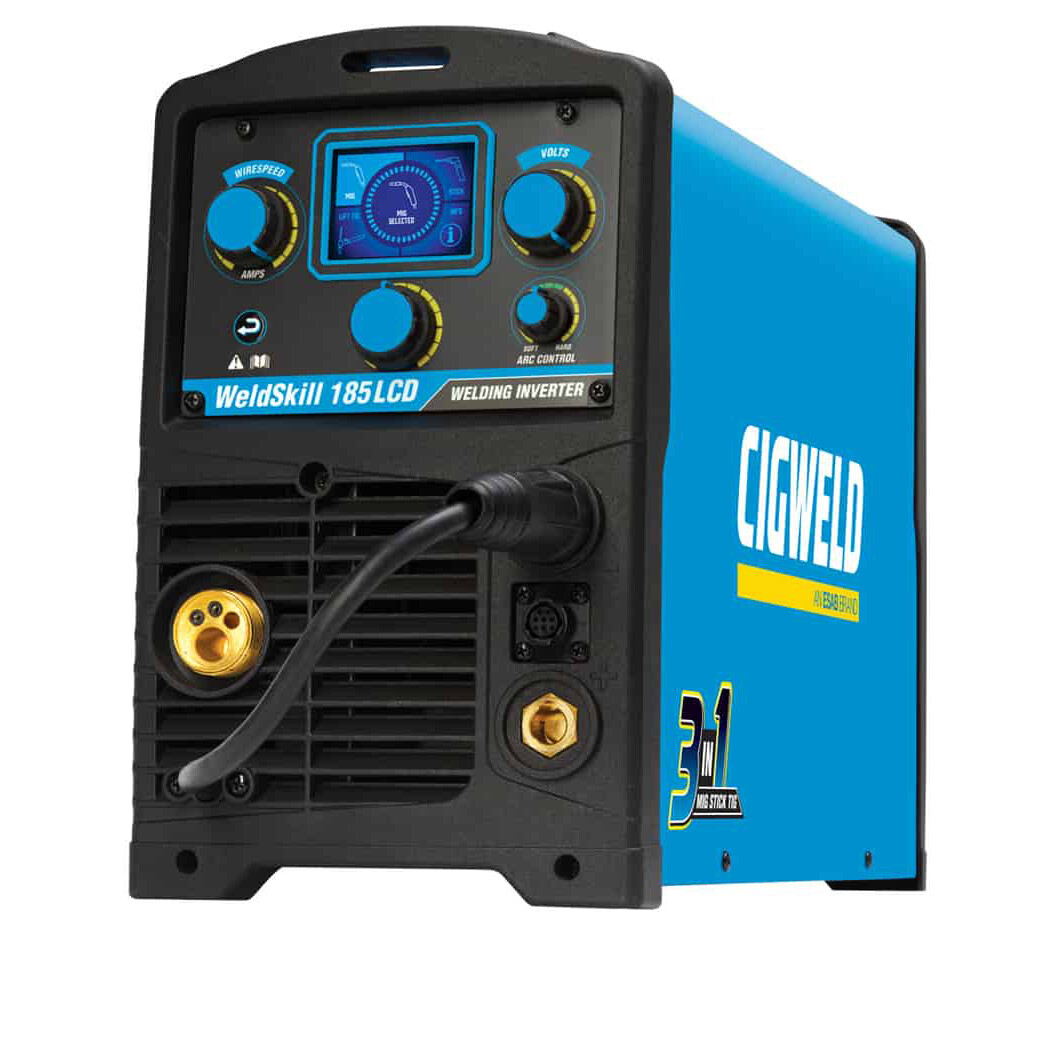

Weldskill 185LCD – Complete Multi Process Welding Inverter

The LCD Display makes it super simple to navigate through the welding modes and advanced features

The WeldSkill 185LCD is a complete 3in1 offer that includes all the accessories required to get you MIG, STICK and TIG welding immediately (3m MIG Torch, 4m TIG Torch & 3m Electrode Holder).

Like its predecessor, the WeldSkill 185LCD offers the many benefits of a professional welding machine in a compact, portable, easy to use and affordable self-contained single phase welding inverter – but now with the added feature of a digital 2.8” LCD Digital Display improving navigation of all functions via the full colour screen.

Ideal for welders who want to do light fabrication, maintenance and repairs around their workshop without compromising on quality or safety. And for more intricate welding jobs, especially Aluminium, you can’t go past the WeldSkill 185LCD which is specifically built to run the SGT250 spool gun!

The WeldSkill 185LCD is equipped with an integrated wire feed unit, Voltage Reduction Device (VRD applicable in stick mode only), quick connect gas connection and a host of other advanced features such as Adjustable Burnback, Arc Control, Spot Welding (MIG), Downslope (TIG) etc.

The WeldSkill 185LCD is also backed by a 2 year warranty* and fitted with a 10 Amp plug, meaning you can plug it into any standard 10amp power point and get welding!

And most importantly this multi-process welding inverter is fully compliant to AS 60974.1-2020 and IEC 60974-1.

This complete 3in1 package includes:

• CIGWELD E-180 Mig Torch 3m with Euro Connection
• CIGWELD Tig Torch 17V 4m (remote control)
• CIGWELD Electrode Holder 3m

LCD DISPLAY

Easy navigation to select & clear LCD Screens

The 2.8” LCD Colour screen whether in MIG/Stick or TIG mode makes it easy to adjust features like Spot Welding (MIG Mode) or Downslope (TIG Mode).

FEATURES:

• PLUG & PLAY
  Suitable for use with any standard 10 Amp power point! 240 Volt, 50/60Hz, 10 Amp Supply Lead Fitted to Power Source
• Complete 3 IN 1 Multi-Process
  A complete multi-process machine including all accessories required to MIG, STICK and TIG Weld. (MIG Torch, TIG Torch & Electrode Holder)
• Current Range
  Current Range for this Power Source is 30 to 185A (MIG Mode) provides DC Output
• MIG (GMAW / FCAW): 185A @ 10%
  0.6-0.9mm: Solid MIG Wires & 0.8-0.9mm Gasless MIG Wires 0.9-1.0mm: Aluminium MIG Wires 0.8-0.9mm: Stainless Steel MIG Wires
• STICK (MMAW): 160A @ 10%
  Power Source is suitable for 2.0mm, 2.5mm, 3.2mm and 4.0mm electrode sizes
• TIG (GTAW): 160A @20%
  This unit features a DC Lift TIG function that provides smooth starting and running characteristics across a broad range of applications
• LCD Screen Display
  2.8’’ Full colour LCD Display with easy navigation of all functions on screen.
• Adjustable Burnback Control
  Used to adjust the amount of MIG wire that protrudes from the MIG torch after the completion of MIG welding. (commonly referred to as stick out)
• Arc Control (Inductance)
  The arc control operates in MIG (GMAW/FCAW) mode only and is used to adjust the intensity of the welding arc
• Spot Weld (MIG Mode)
  Spot Welding allows the user to pre-set the duration time of their welds up to 10 seconds (MIG mode only)
• Downslope (TIG Mode)
  Down Slope allows the user to pre-set the time for the weld current to ramp down (TIG mode only)
• Integrated Wire Feed Unit
  Spools up to 5kg or 200mm
• Hot Start
  Improves the arc start characteristics of stick electrodes
• Anti-Stick
  Helps to prevent the stick electrode from sticking to the work piece
• Voltage Reduction Device
  Standards Compliant Voltage Reduction Device (Stick Mode Only)
• Euro Torch Connection
• SGT250 Spool Gun Compatible
  Ideal for Aluminium Fabrication, Repairs and Auto/Marine work. Compatible with Tweco SGT250 Spool Gun
• Over Temperature Protection
  Cut out protection has been fitted to the power source
• Recommended Generator
  10kVA (at 0.8 Power Factor)* *Refer to operating manual for further information
• Compliance
  Fully compliant to AS 60974.1-2020 Enclosure rated to IP21S
• Warranty
  2 Year Warranty* on Power Source *Refer to Operation Manual for full details
• Wire Type
  Suitable for Gas and Gasless Wires

CONTENTS:

• WeldSkill 185LCD Inverter Plant W1008193
• WeldSkill 185LCD Power Source
• MIG Torch with Euro Connection, 3m
• TIG Torch 17V 4m Lead
• Twistlock Electrode Holder with 3m Lead
• CutSkill Argon Regulator/Flowmeter
• Work Clamp with 3m Lead
• Shielding Gas Hose Assembly, 3m
• Feed Rolls: 0.8/0.9mm Flux Cored (Fitted), 0.8/0.9mm V Groove
• Contact Tip: 0.8mm (Fitted)
• Operating Manual (can be downloaded at cigweld.com.au/manuals)

OPTIONAL ACCESSORIES:

• E-180 MIG Torch (included with package) W4018800
• TIG Torch 17V with 4m lead, gas valve & remote control W4013800
• TIG Torch 17V, 4m lead and Gas valve W4013801
• TIG Torch Accessory Kit for 17, 18 & 26 TIG Torches BGSAK2
• Tweco SGT250 Spool Gun W4011250
• WeldSkill Argon Regulator / Flowmeter, 55LPM, 2 Gauge 210254
• MIG Pliers WSPLIER
• WeldSkill Welding Equipment Trolley W4011501
