Weighing in at a slight 3kg in the hand and sized at only 100mm Wide and 185mm High on your bench, this little gem is conveniently thrown over the shoulder and taken wherever you need to go. With adjustable welding current from 10 to 140 amps, and adjustable Hot Start and Arc Force, you have the flexibility to run standard general-purpose 2.5mm electrodes for light gauge work (less than 3.0mm plate) and 3.2mm electrodes for heavier metals.
The MicroArc 140 also has a lift TIG function that offers stable TIG welding characteristics at 140A@20% when used with a suitable TIG torch and argon shielding gas. With a 10Amp plug and 3m twist lock electrode holder and work lead, its hard to go past the MicroArc140 as your lightweight portable welder of choice around the workshop or out on the job site.

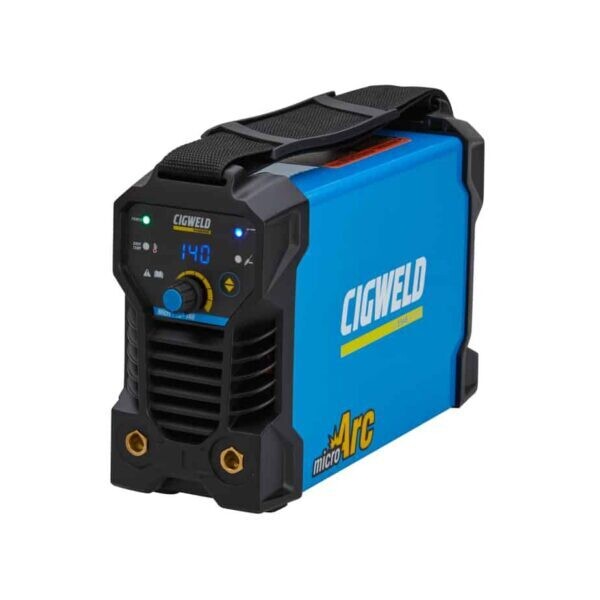

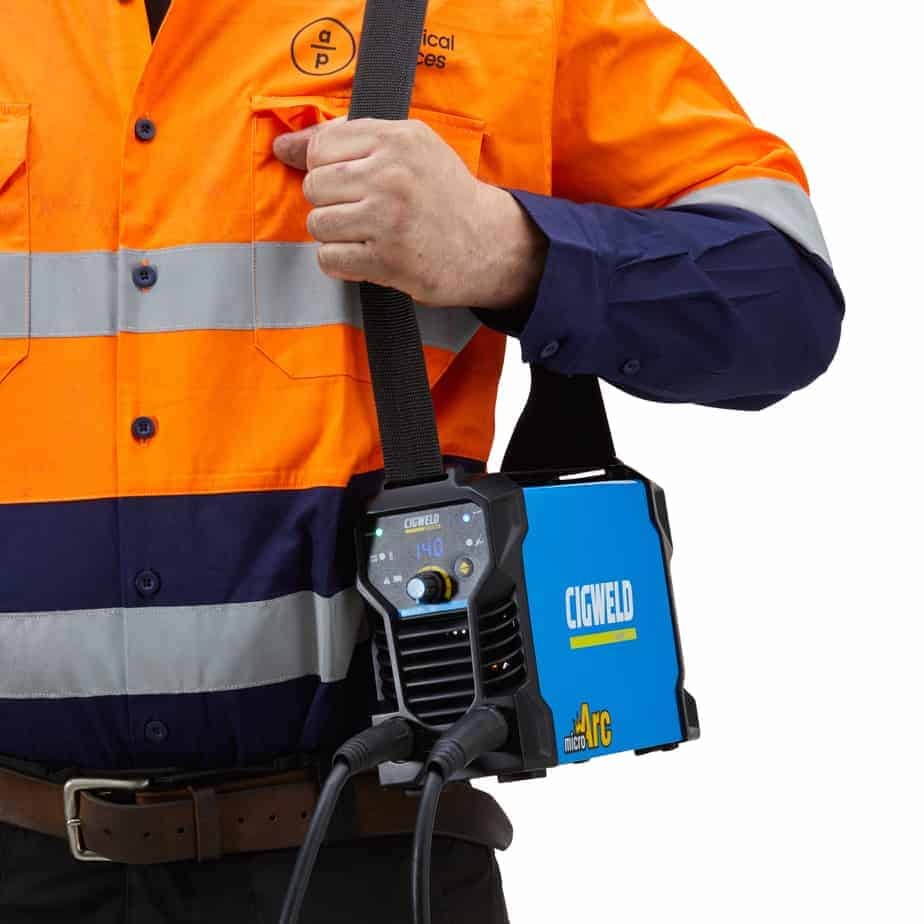

SMALL SIZE & PORTABILITY – A micro 3Kg inverter in a compact 100W x 185H x 252D case with carry strap.
DIGITAL BLUE LED AMP METER – Bright Blue LED’s allow for accurate setting and improved visibility of the welding amperage even outdoors & in bright light conditions.
ADJUSTABLE HOT START – Improves the arc start characteristics of stick electrodes
ADJUSTABLE ARC FORCE – Assists when stick welding in a tight corner or joint fit-up.
TWISTLOCK ELECTRODE HOLDER – Allows quick electrode change overs and locks rods securely in place for welding.
240 Volt, 50/60Hz, 10 Amp Supply lead Fitted to Power Source.
Current Range for this Power Source is 10 to 140A Power Source provides DC welding output.
STICK (MMAW): 140A @ 15%
Power Source is suitable for 2.0mm, 2.5mm, and 3.2mm electrode sizes. Suitable for all electrode types except AWS E6010 Cellulose.
DC Lift TIG: 140A @ 20%
This unit features a Lift TIG function that provides smooth starting and running characteristics across a broad range of applications.
Helps to prevent the stick electrode from sticking to the work piece.
Adjustable Hot Start
Improves the arc start characteristics of stick electrodes.
Adjustable Arc Force
Assists when stick welding in a tight corner or joint fit-up.
MICRO Size & Portability
A micro 3kg inverter in a compact 100W x 185H x 252L case with carry strap.
Recommended generator required: 6.0kW (7.5kVA @ 0.8 PF).
Twistlock Electrode Holder
Allows the electrode to be locked securely in place.
Electrode Holder & Lead
3m Long Electrode Holder & Work Leads
Over Temperature Protection
Cut out protection has been fitted to the power source.
Fully compliant to AS 60974.1-2020 enclosure rated to IP21S.
1 Year Warranty* on Power source *Refer to Operation Manual for full details.
