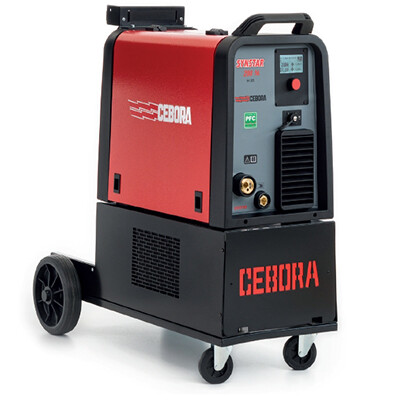

CEBORA SYNSTAR 250 M

SYNSTAR 250 M

The new SYNSTAR 250 M is a synergic inverter single-phase ( 230V 50/60 Hz +15% / -20%) power source for MIG/MAG welding, with 4-roller Cebora wire feed unit.

• Aluminium 4-roller-wire feed unit (Ø 30 mm)
• Equipped with power source transportation trolley, ground lead ( 3 m - 25 mm2) and clamp
• 43 synergic curves for Solid wire ( Ø 0,6/0,8/0,9/1,0 /1,2 mm) and flux-cored (Ø 0,9 mm). Flux-cored wires can be welded, either with or without shielding gas, by simple polarity inversion
• Pulse function upgrade [Art. 238],which allows to activate synergic curves dedicated to solid, mild steel, stainless steel, aluminum and CuSi3. It has got more than 80 welding programs
• Double current level function upgrade [Art. 813], The Double Pulse function can be achieved by enabling the Pulse upgrade
• The LCD Display shows in real time the machine set up and allows the operator to read wire and gas type, current and thickness, voltage and wire speed
• The power source is supplied with many adjustable functions which can be accessed from the panel, including:
  - Arc Length, 2/4 strokes, Spot Time, Pause Time, Inductance, Burn Back, Soft Start etc - SHORT or PULSE process
  - Three important specific functions dedicated to an optimal aluminum welding (3 levels, Automatic Hot Start, Automatic Crater Filler)
• The Euro connector allows to use either a standard MIG torch or the Cebora Push-Pull 2003 one. ( In this case, the current supplied by the power source is automatically limited to 200 A
• It is possible to work with two different types of coils: Ø 200 mm or Ø 300 mm

Art.	358	Technical Specifications
	230 V 50/60 Hz +15% / -20%	Single phase input
	25 A	Fuse rating (slow blow)
	8,6 kVA 20% 6,2 kVA 60% 5,4 kVA 100%	Input power
	20 ÷ 250 A	Min.-max. current that can be obtained in welding
	250 A 20% 200 A 60% 180 A 100%	Duty Cycle (10 min.40°C) According to IEC 60974-1
	Electronic	Stepless regulation
	0,6/0,8/0,9/1,0/1,2 Fe 0,6/0,8/0,9/1,0/1,2 Al 0,8/0,9/1,0/1,2 Inox 0,8/0,9/1,0 CuSi3% 0,9 Cored	Standard supplied synergic programs
	Fe/Al/CuSi3/Inox	Optional pulsed synergic programs (art. 238/813)
	Ø 300 mm/15 kg	Max. wire spool size
	IP23S	Protection class
	45 kg	Weight
	480x830x825 mm	Dimensions (WxLxH)
