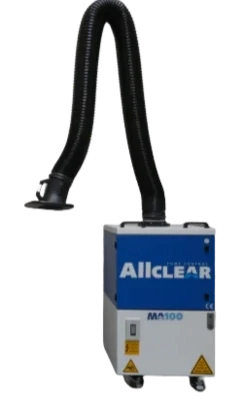

ALLCLEAR MA100 FUME FILTER UNIT

The Allclear MA100 is a durable welding and grinding fume extraction unit equipped with a 3-metre arm. It is one of the most compact and economical products of the Allclear fume extraction system series. Mounted on casters for greater mobility, the Allclear MA100 has cleanable filters and an impact plate above the filter to reduce the risk of burnout and increase the life of the filters.

Incorporating technology such as:

• Cleanable cartridge filter
• High extraction performance
• Ideal filtration rate

Available options include:

• HEPA filter
• Carbon filter

Features Include:

• Compact design
  Takes up little space in the work area and allows for easy mobility.
• Ergonomic design
  This allows the user to access all functions.
• Unique mechanism
  The special equipment used in the joints of the acrobat arm with internal mechanism prevents metal fatigue and protects the integrity of the arm.

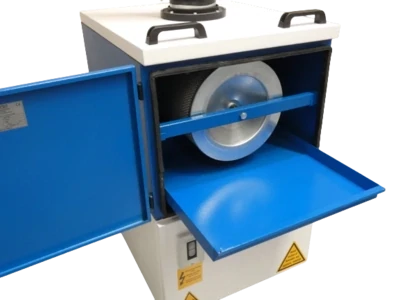

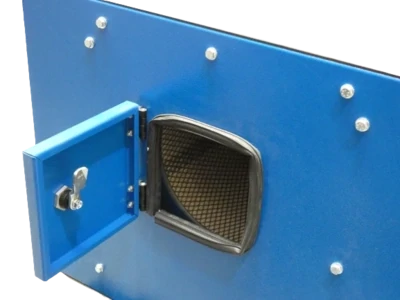

• Filter cleaning door
  provides easy and safe access to the cartridge filter.
• Cartridge filter
  14.5m² surface and nanofiber structure provide very high filtration efficiency and long life.
• Suction hood
  catches the particles with its large structure which is lightweight and durable.
• Unique patented dust collection system
  Thanks to the dust collection bin, the cartridge filter life is extended meaning safer dust removal is achieved and dust can be discharged even when the machine is running.

Filters:

F9 Cartridge Filter (Part Number 91990116)
Hepa H13 Cartridge Filter (Part Number 91990118)
Carbon Filter (Part Number 9199012)

Motor size: 1.1kw

Voltage: 240v

Motor Power: 1.1kW

Mains Supply: 220 V / 50Hz

Maximum Air Flow: 3000m3 per hour

Air Flow at Suction Point: 1600m3 per hour

Area of Filter Cartridge: 14.5 m2

Filter Cleaning: Manual

Standard Arm Length: 3 metres

Body: Galvanised Steel

Fan: Aluminium

Noise: 74 dBA

Sound Insulation: Acoustic sponge

Dimensions mm (L x W x H): 780 x 600 x 1000

Weight: 100kgs
